Mud Pump Relief Valve



NAIL SIZE FOR RELIEF SETTING PER MUD PUMP SIZE.

MUD PUMP PSI NAIL SIZE
4 X 5 250 3 PENNY
5 X 6 400 4 PENNY
5 X 8 400 4 PENNY
5 X 10 600 8 PENNY
5.5 X 8 400 4 PENNY
7.5 X 8 250 3 PENNY
7.5 X 10 250 3 PENNY
7.5 X 10 400 4 PENNY

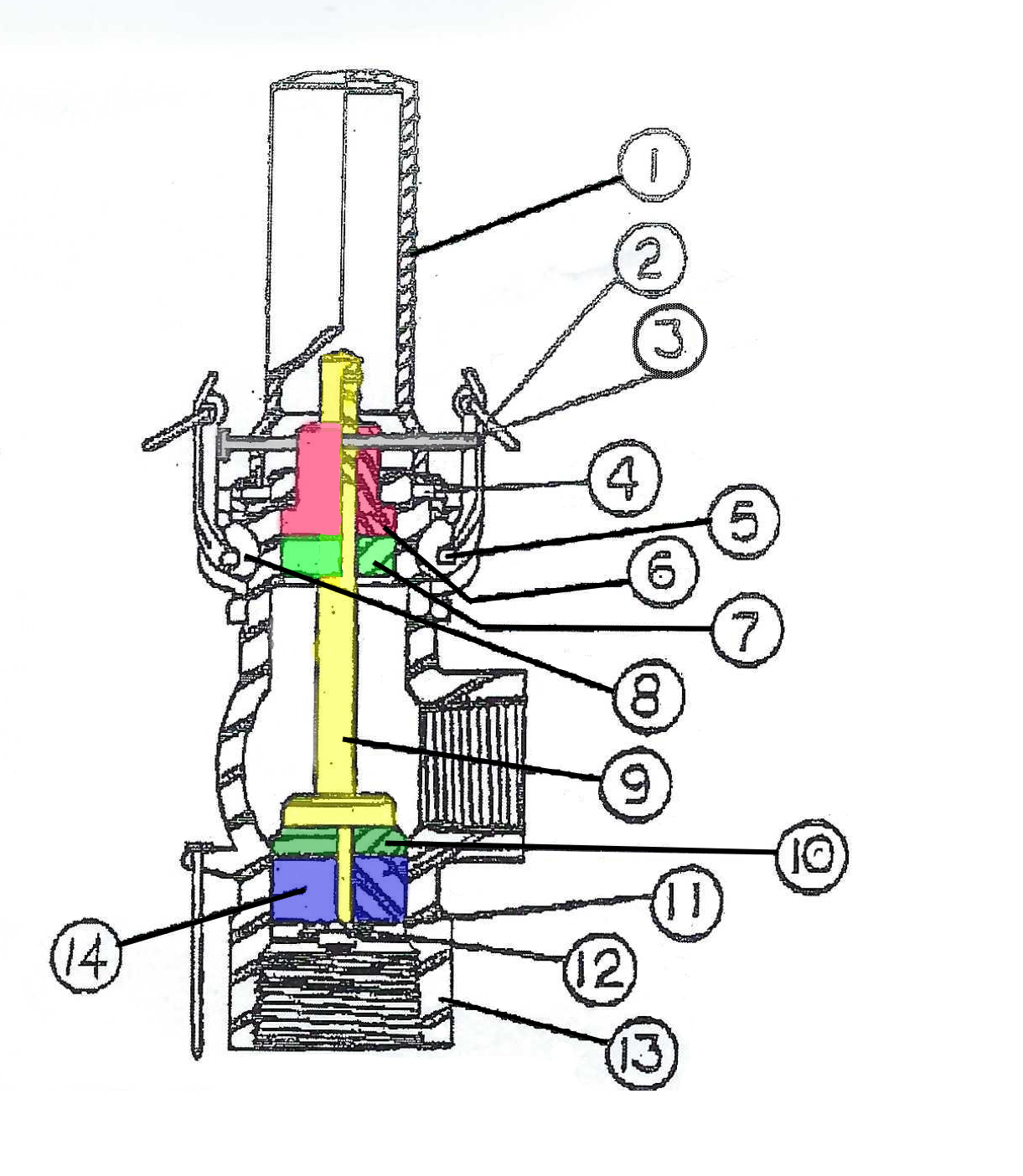

PARTS LIST

ITEM PART NUMBER QUANTITY DESCRIPTION
1 XCS-1030 1 GUARD
2 XCS-1021 2 RING
4 XCS-1023 1 GASKET
5 XCS-1022 2 PIN
6 101F831 1 BUSHING
7 XCS1050 1 CUSHION
8 XCS-1020 2 LEVER
9 XCS-1060 1 STEM
10 101F834 1 WASHER
11 8-W-SAE 1 WASHER
12 6CP-16 1 PIN
13 XCS-1010 1 BODY
14 XCS-1080 1 PISTON
